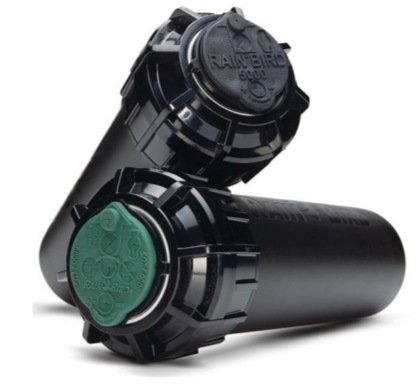

GEAR DRIVEN POP UP – 5000 SERIES
- Pressure activated multi-function wiper seal protects internals from debris and assures positive pop up and retraction.
- Heavy duty retract spring assures positive pop down.
- Heavy duty covers assembly for extra durability in residential or commercial applications.
- Large water droplets for greater wind resistance, effective close in watering and even distribution over the entire radius.
- Self-aligning nozzles.
- Slip clutch mechanism for quick adjustment on installation.
- Rain Curtain nozzles deliver even distribution over the entire radius including large wind resistant droplets & gentle close in watering resulting in greener turf using less water.
- Precipitation rate : 5 to 26 mm/h
- Flow Rate : 4.2 to 36.6 l/m
- Radius : 7.6 to 15.2 m
- Pressure : 1.7 to 4.5 bar
- Pop Up Height : 4” (10.2 cm)
- ½” NPT female bottom threaded inlet
- Reversing full and part-circle adjustment 40⁰ to 360⁰
- Standard nozzle trajectory angle: 25⁰
